Description

Specification:

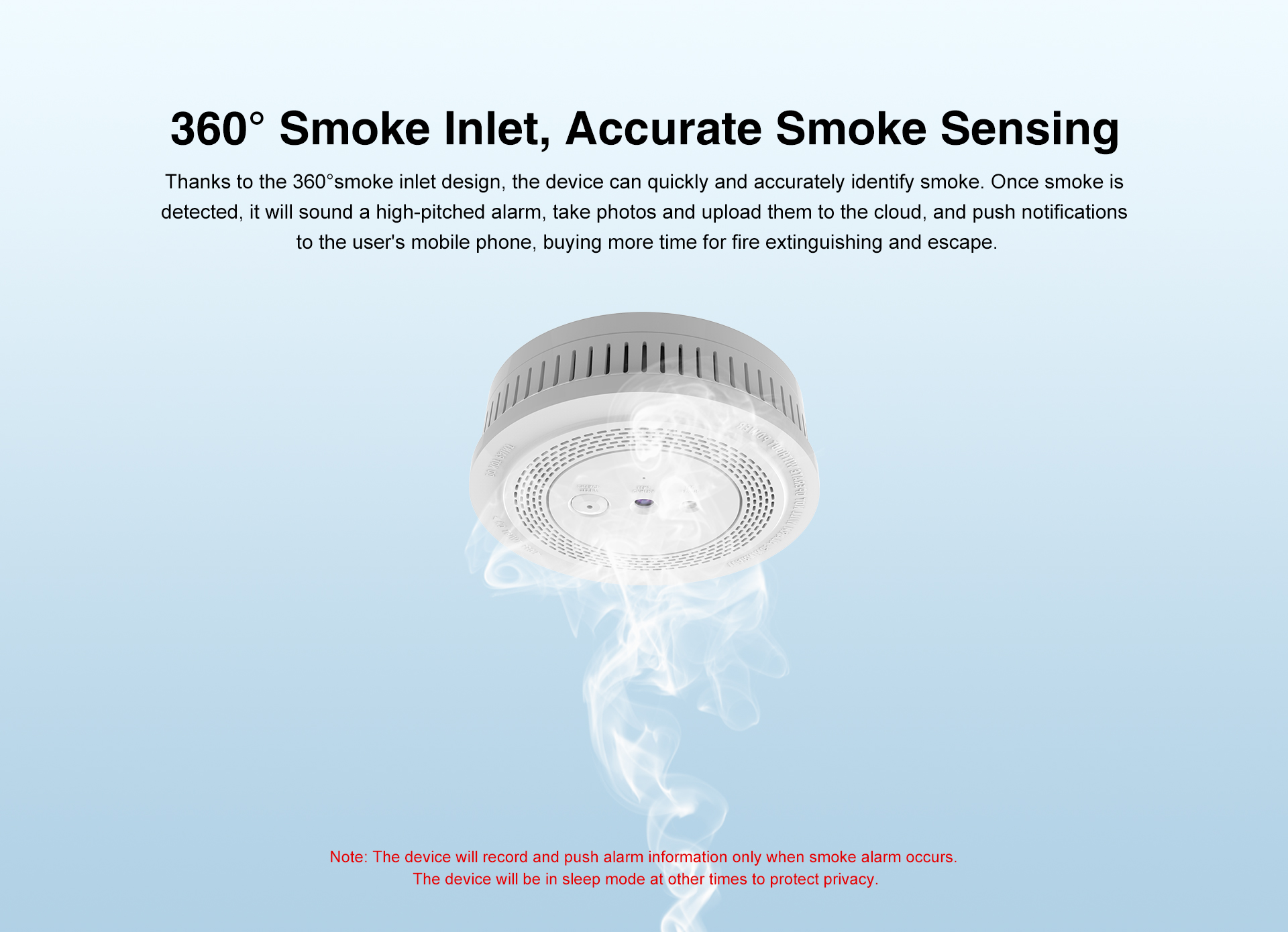

✮Comprehensive monitoring of smoke

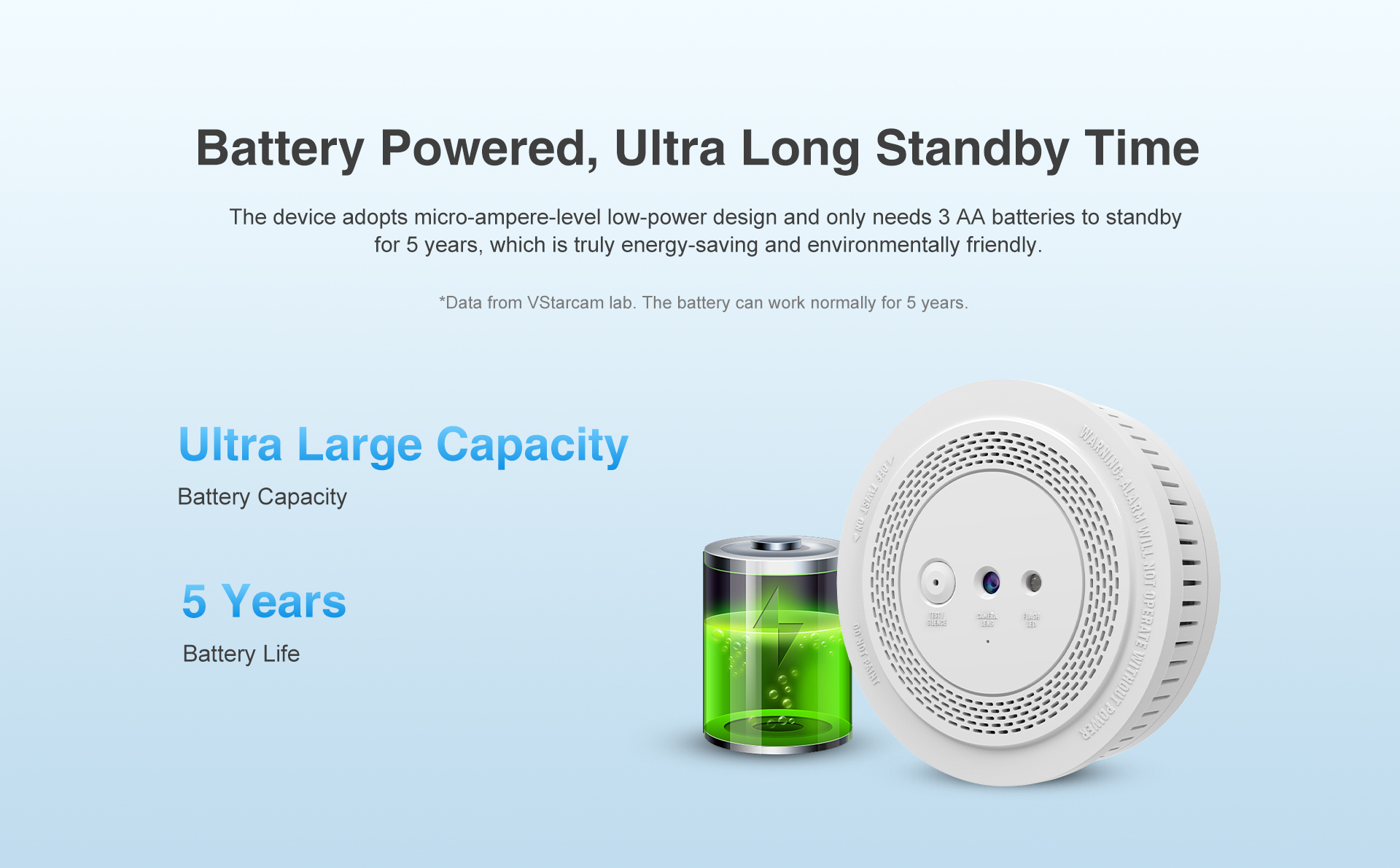

✮Micro-ampere-level low power consumption,3 AA batteries, 5 years of standby time
✮Dedicated 4G data card with extremely low charges
✮Upload real time fire photos to the cloud so that you can know the situation in time;Photos saved in the cloud for 2 years
✮Privacy is turned off by default, and it is turned on only when the alarm is triggered to protect privacy
✮Low battery warning, App push alerts
✮ Support remote mute/local mute

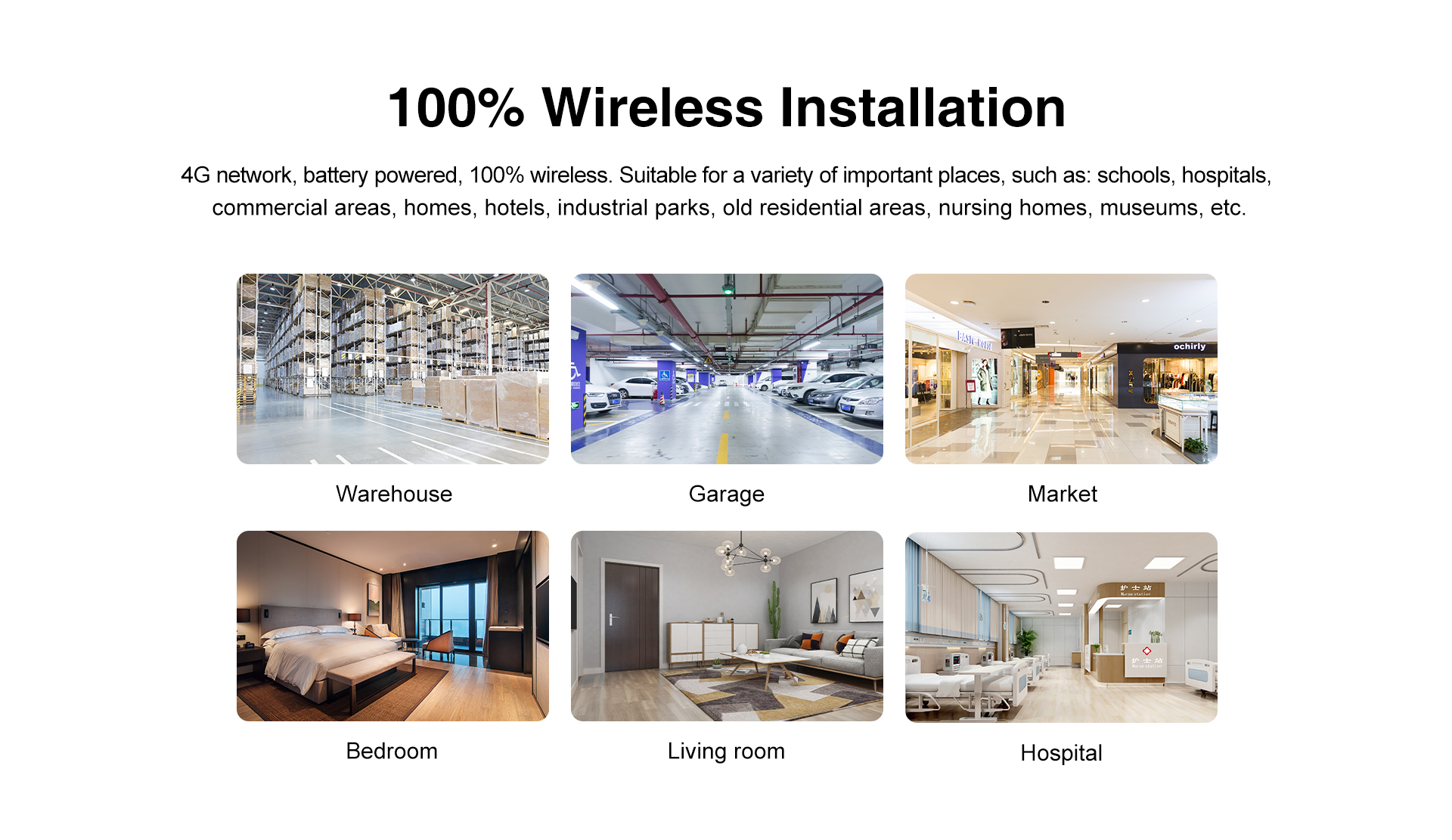

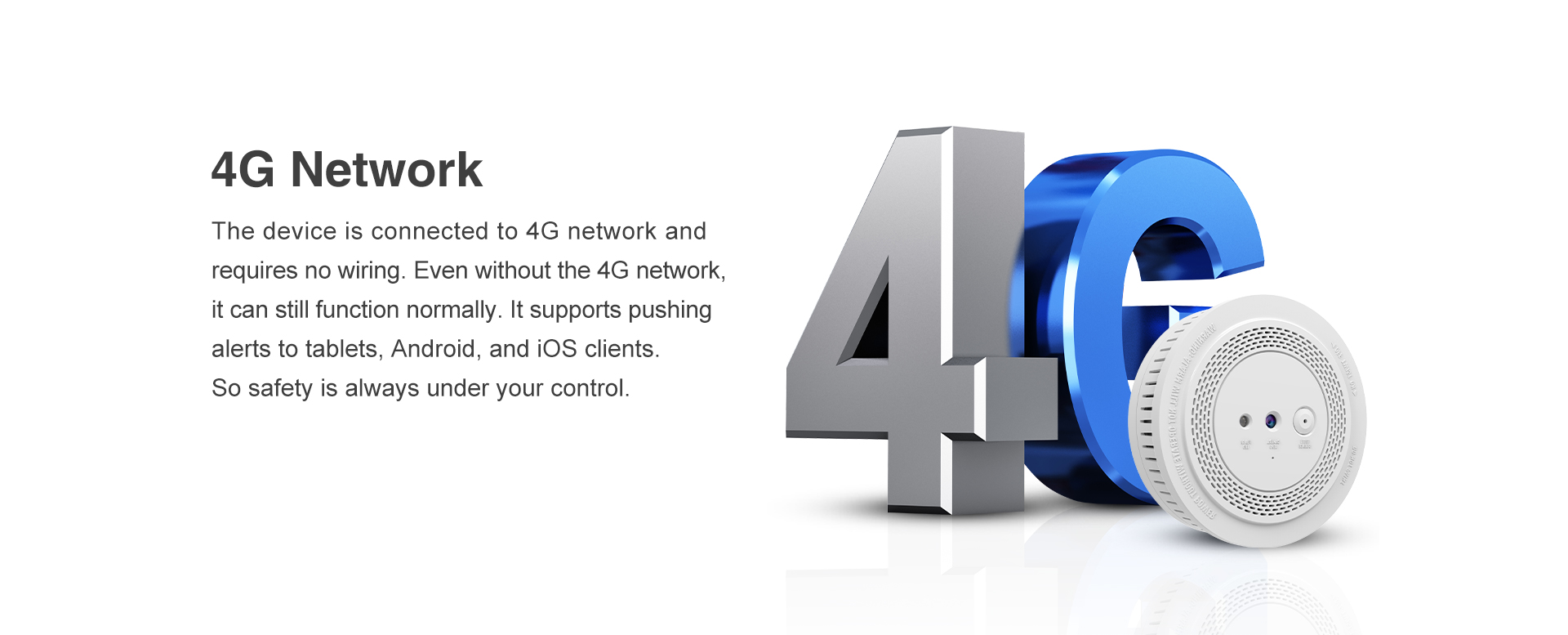

✮4G network
✮CCC certification for fire protection products
✮The process of adding devices is guided by voice, which is simple and convenient
SortsTypeParameters
SystemOperating systemOpen CPU
APPXiaoying ding dong
CollectionCPUOpen CPU
Image640×480

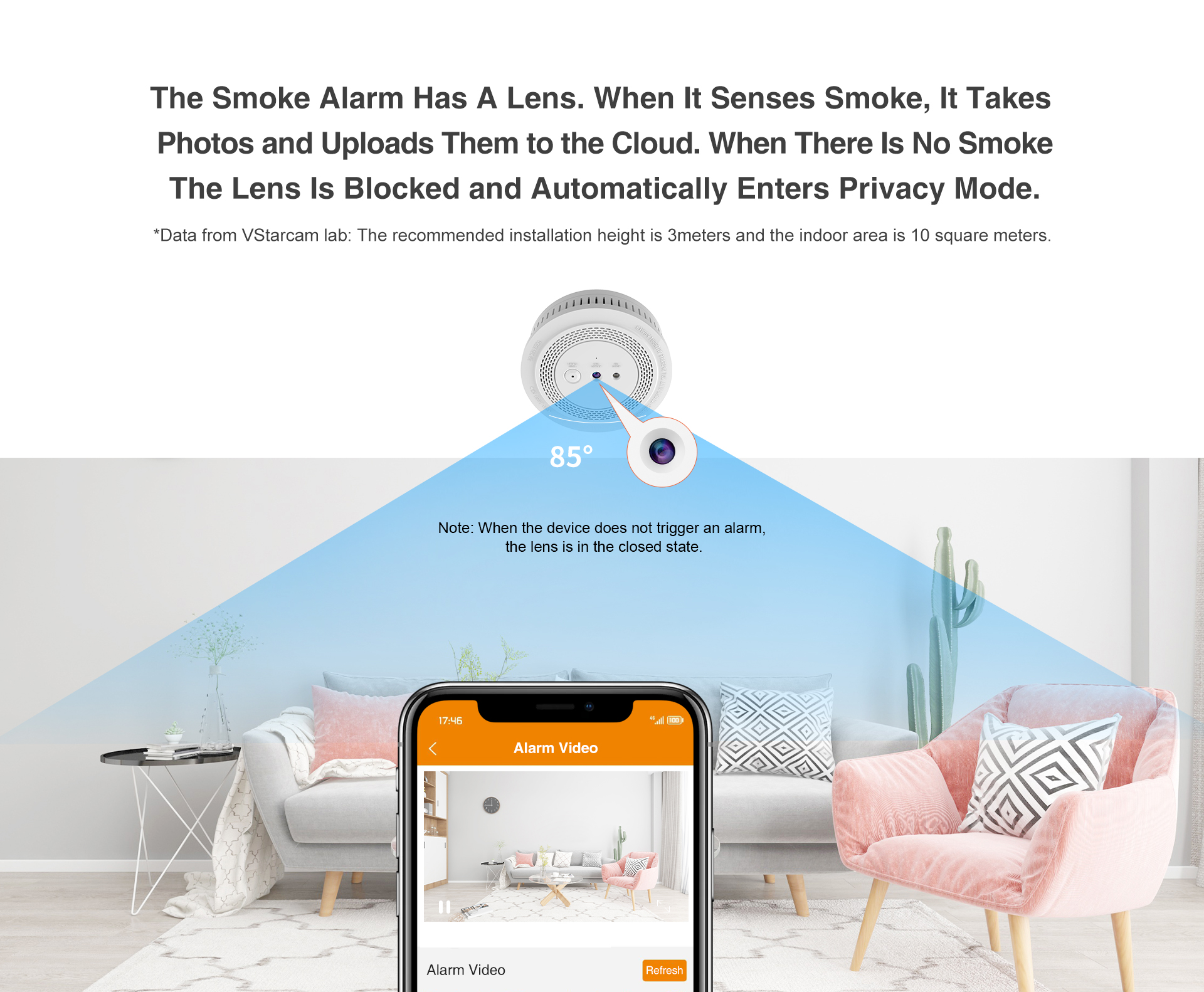

LensD85° wide-angle lens (horizontal 104°/vertical 88°)
Smoke sensing principlePhotoelectric
AudioOutput≥80dB/3m
Sampling frequency/bit width8KHz/16bit
Compression standard/Bit RateG711A
NetworkConnectionScan the QR code to add device
Cat1 ChinaFDD:B1/B3/B5/B8;TDD:B34/B38/B39/B40/B41
KeyKeyShort press to wake up the device; long press for 10 seconds to restore to factory settings
LED StatusSolid blueNetwork connection succeed( with prompt sound)
Blinking blue quicklyWhen there is no SIM card, it will enter sleep mode after about 3 seconds.
Blinking blue slowlyWhen the device has no data/network, it will enter sleep mode after slow flashing for about 13 seconds.
Blue light offSleep mode
Red lightThe heartbeat indicator light flashes every 40 seconds.
White lightFill light (turned on by default when alarm is triggered)
Physical IndicatorsPower supply3 AA batteries
ConsumptionSleep current 30uA, working: 80mA
Operating conditionWorking temperature: -10~55 ℃, working humidity<90%
WeightNet weight: 150g; Gross weight: 251g;

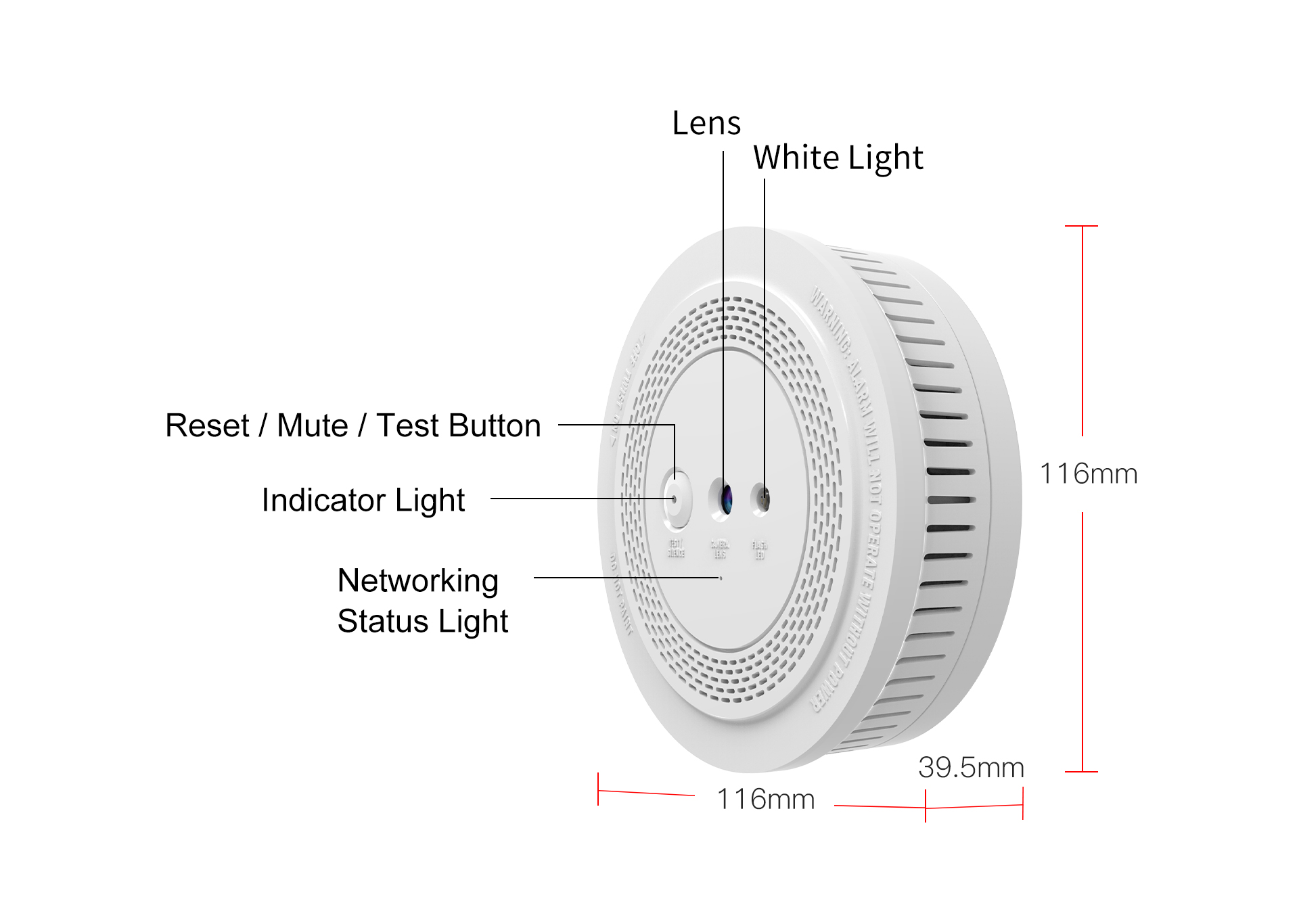

SizeDevice:116*116*39.5mm;Packaging box:133x44x119mm
Additional information
Weight.5 lbs
